Liquid-solid separation system


+
  • 01(26).jpg

Liquid-solid separation system


Solid liquid separation technology and economical analysis of the project feasibility;

key word:

Liquid-solid separation system

Category:

Liquid-solid separation system

图片名称

Hotline:

  • Description
  • Operating Principle
  • Performance feature
  • Technical
  • Application
    • Commodity name: Liquid-solid separation system
    • Commodity ID: 1072604522191933440

    Solid liquid separation technology and economical analysis of the project feasibility;

    液固分离系统



    1.Solid liquid separation technology and economical analysis of the project feasibility;
    2.Design and implementation of process separation test;
    3.Optimal selection of membrane materials;
    4.Membrane assembly special conditions and sealing structure design;
    5.Optimization design and selection of liquid solid separation process
    6.Design of cleaning process for membrane regeneration
    7.Large solid liquid separation pretreatment process scheme of system design
    8.Complete sets of liquid-solid separation process design system, including manual mode, automatic mode, continuous automatic mode.
    9.Design of automatic control scheme of complete sets of membrane separation device
    10.Optimization and upgrading the existing membrane separation system

    Key words:
    • Liquid-solid separation system

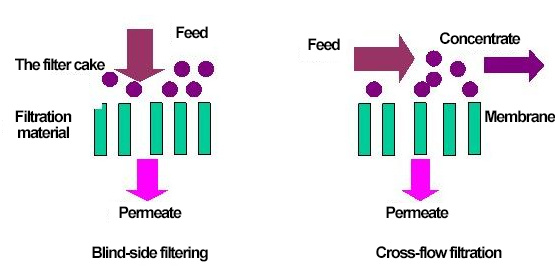

  • The operating principle of the inorganic ceramic membrane is “internal pressure cross-flow filtration” mode, that is, the fluid enters through pump acceleration and pressure rise into the membrane element via multiple channels. Driven by the pressure, water and micromolecule dissolved component forms the penetrating fluid (or called the filtrate) through the membrane, some macromolecule components such as suspended solids, grease, etc. are retained by the membrane to form the concentrated fluid (or called the trapped fluid), and discharged from another end. Because the fluid flows on the surface of the microporous membrane at high speed, it is not easy to form the thick filter cake, with small filtration resistance, so it can maintain stable filtration flux in the long time. Because the microporous membrane aperture is tiny, compared with the separation of the conventional centrifuge and the filter type of the plate-and-frame filter press, the membrane filtrate has the higher light transmittance and the fewer impurity content.



    Liquid-solid separation system
